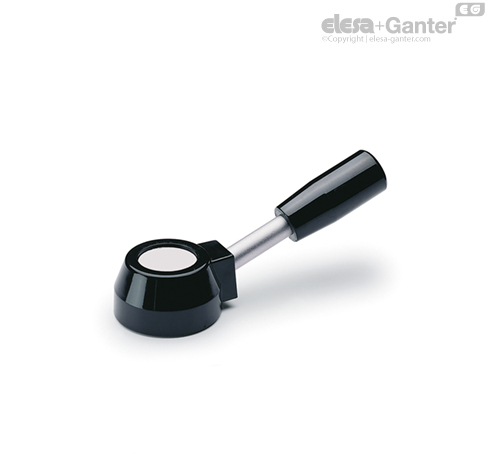

LBR-N Control levers Without boss, with plain hole and flat face

Lever body

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Lever arm

Matte chrome-plated steel with cylindrical handle I.280- in Duroplast.

Self-adhesive front plate

Matte anodised aluminium to be fitted after the assembly of the lever.

Standard executions

• LBR-A: black-oxide steel boss, H7 reamed hole.
• LBR-N: without boss, with plain hole and flat face.

LBR.45 N and LBR.54 N: flat face opposite to the arm.

LBR.75 N: flat face in correspondance of the arm.
