Izvedba
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Ajustable pin with octagonal slot
Acetal based (POM) technopolymer, black colour.
Standardne izvedbe

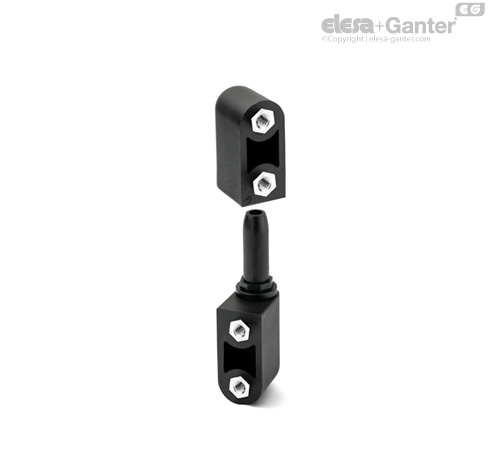

- CFN-B: nickel-plated brass bosses with threaded hole.
- CFN-p: nickel-plated steel threaded studs.
- CFN-B-p: nickel-plated brass bosses with threaded hole and nickel-plated steel threaded studs.
- CFN-p-B: nickel-plated steel threaded studs and nickel-plated brass bosses with threaded hole.
Opomba
Funkcije

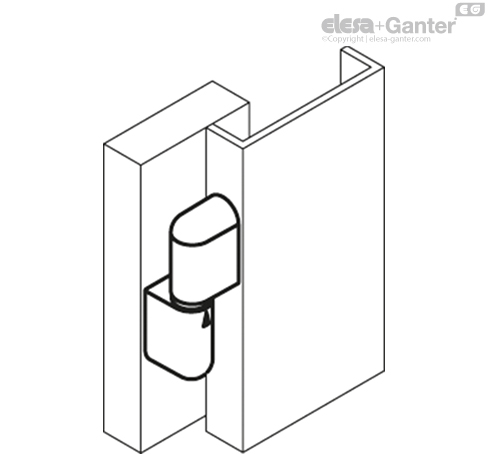

CFN. in line lift-off hinges (ELESA patent) have been designed to adjust possible misalignments between the door and the frame.
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
| Testi upornosti |
| AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV |
 |  |
| Vzporedne ravnine | Pravokotne ravnine | Vzporedne ravnine | Pravokotne ravnine |
Največja delovna obremenitev
Ea [N] | Največja delovna obremenitev
Er [N] |
| 590 | 200 |
The elastic deformation, which occurs on the hinge for values of load exceeding the ones indicated in the table, makes the load at breakage meaningless.
Navodila za uporabo
Navodila za sestavljanje

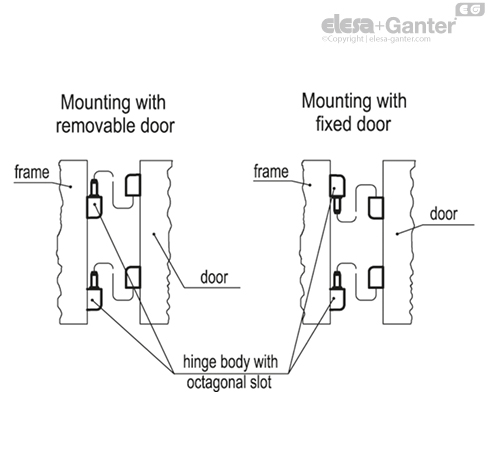

- Fit the hinge bodies with octagonal slot on the frame and the other two bodies with cylindrical slot on the door.

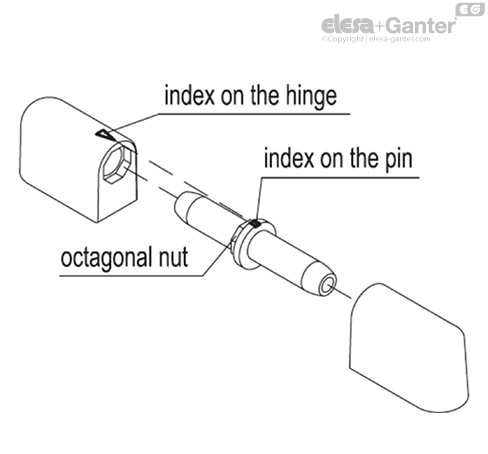

- Insert the pins with octagonal slot in the two bodies fitted on the frame by matching the indexes engraved on the pin and on the hinge.
- Mount the door by matching the hinge bodies on the pins.
Adjustment of the door
In case the door is off line with the frame, the inclination of the door can be adjusted by turning the octagonal slot of the pins clockwise or anticlockwise.
By turning the pin anticlockwise, the distance S increases (+0.5) while by turning the pin clockwise, it decreases (-0.5).
Off line adjustments

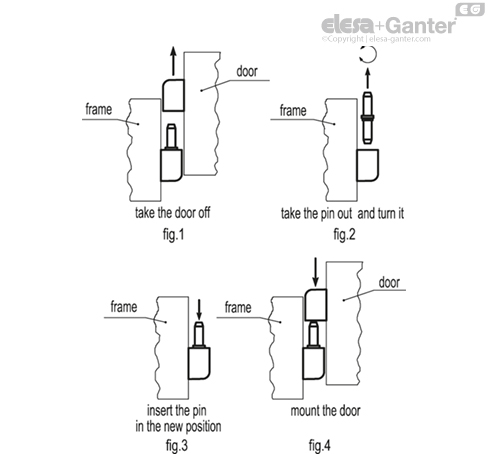

The pin has an octagonal slot which allows different positions for the adjustment of off line door (fig. 1-2-3-4). To have the door in line with the frame, it can be necessary to adjust the pins of both hinges.
Adjustment examples

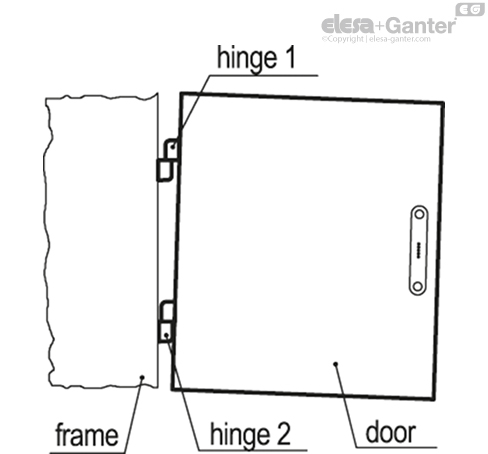

If the door is off line on the bottom side
In order to have the door in line with the frame, turn the pin of hinge 1 anticlockwise by 45° or 90° and the pin of hinge 2 clockwise.

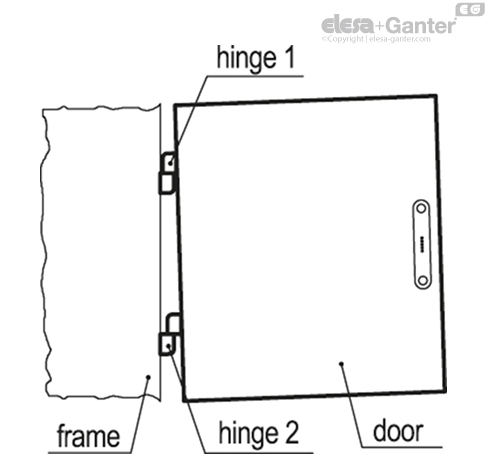

If the door is off line on the top side
In order to have the door in line with the frame, turn the pin of hinge 1 clockwise by 45° or 90° and the pin of hinge 2 anticlockwise.
