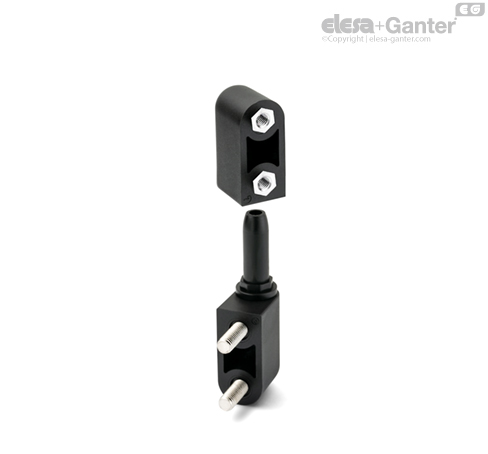

CFN-p-B Poravnani dvižni tečaji Nickel-plated steel threaded studs and nickel-plated brass bosses with threaded hole

Funkcije

CFN. in line lift-off hinges (ELESA patent) have been designed to adjust possible misalignments between the door and the frame.

Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.



Testi upornosti
AKSIALNA OBREMENITEV		RADIALNA OBREMENITEV
Vzporedne ravnine	Pravokotne ravnine	Vzporedne ravnine	Pravokotne ravnine
Največja delovna obremenitev Ea [N]		Največja delovna obremenitev Er [N]
590		200

The elastic deformation, which occurs on the hinge for values of load exceeding the ones indicated in the table, makes the load at breakage meaningless.

Navodila za sestavljanje

1. Fit the hinge bodies with octagonal slot on the frame and the other two bodies with cylindrical slot on the door.
2. Insert the pins with octagonal slot in the two bodies fitted on the frame by matching the indexes engraved on the pin and on the hinge.
3. Mount the door by matching the hinge bodies on the pins.





Adjustment of the door

In case the door is off line with the frame, the inclination of the door can be adjusted by turning the octagonal slot of the pins clockwise or anticlockwise.

By turning the pin anticlockwise, the distance S increases (+0.5) while by turning the pin clockwise, it decreases (-0.5).



Off line adjustments

The pin has an octagonal slot which allows different positions for the adjustment of off line door (fig. 1-2-3-4). To have the door in line with the frame, it can be necessary to adjust the pins of both hinges.



Adjustment examples

If the door is off line on the bottom side

In order to have the door in line with the frame, turn the pin of hinge 1 anticlockwise by 45° or 90° and the pin of hinge 2 clockwise.



If the door is off line on the top side

In order to have the door in line with the frame, turn the pin of hinge 1 clockwise by 45° or 90° and the pin of hinge 2 anticlockwise.
